Our KW Designed Solutions designed and developed actuated chock closure high pressure testing vessels are equipped with an automated quick-acting closure. Our innovatively engineered vessel closure, uses electrically actuated sliding chocks, that lock the closure plug in place. Its robust design provides the operator with a quick and simple opening and closing of the vessel, with the push of a button.

The compact nature of the actuated chock closure allows the body of the vessels to be shorter in height, making them ideal for use in facilities where height is restricted. Manual handling of the relatively heavy chocks is not required, as they simply retract when actuated, into the wall of the vessel body.

The closure plug is the only item that requires handling, during the opening and closing of the pressure vessel. It is relatively low weight and numerous attachment points ensure it can be raised/ lowered using a standard hoist, with a low to moderate lifting capacity. The closure comes with a plug guidance system (PGS) for alignment with the vessel and attachment points are also included on the underside of the closure for hanging off the device under test (DUT).

Used in vertical orientation, these pressure vessels have a relatively small footprint, taking up minimal shop floor space. The pressure vessel can be provided with its own closure handling system, can be installed below ground level or supplied with its own structural safety enclosure.

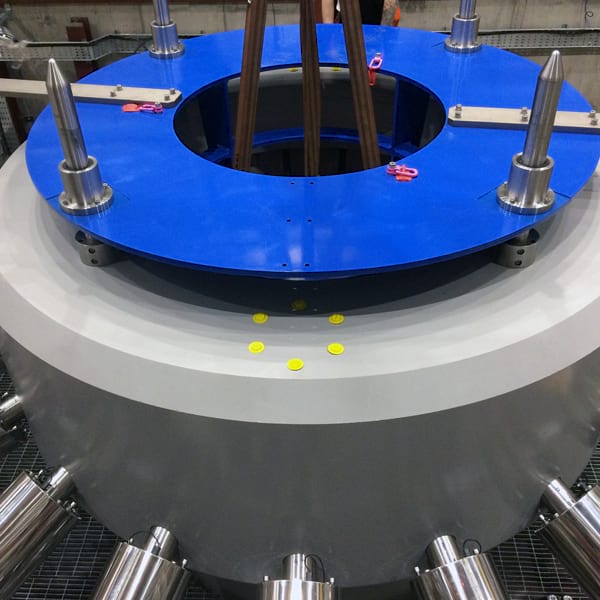

Actuated chock closure

Features

  • Materials of construction: Stainless Steels, Carbon and Alloy Steels
  • Multi-Penetration Closure
  • Multi-Penetration Vessel Body
  • Pressure: 200 bar to 690 bar
  • Push-button Lock/ Unlock with Status Indication and Integral Safety Interlock System
  • Seal Type: O Ring with PTFE back-up-ring or Springsele®,
  • Size: Between Ø500mm to Ø1800mm Bore and Depths of 1000mm to 7500mm
  • Temperature: -20°C to 200°C
  • Volumes: 200 litres to 20,000 litres

Benefits

  • Custom Size and Pressure Range Available to Meet Specific Requirements
  • Guided Closure Alignment System Allows Easy and Safe Operation
  • Integral Safety Interlock System Prevents Accidental Opening and Allows for Integration with Pressure Control Systems and Safety Enclosure Door Locking Devices
  • Long Service Life
  • Low Maintenance Requirements
  • Multiple Penetrations for Tooling, Electrical Feed-Through and Pressure Control Hardware
  • Quick Acting Opening and Closing Times: 2 Minutes to Open/ Close, 20 Seconds to Lock/ Unlock
  • Rapid, Single Push Button Lock/ Unlock Functionality
  • SWL Rated Closure for Attachment of DUT (Device Under Test) – Reducing the Need for Separate Handling

Applications and Customer Uses

Our actuated chock closure pressure vessel is a popular choice for customers within the Energy and Subsea industry sectors. The safe, quick-acting features and ease of handling provide the customer with the perfect design, suited for in-house operating requirements.

Typically, the Pressure Vessel is used for the FAT and Production Testing of:

  • Buoyancy Products
  • Cable Assemblies
  • Electrical Penetrators and Sensors
  • Hoses
  • Subsea Electrical Components

Favoured by many blue-chip companies in the Energy and Ocean Science sectors such as Siemens Subsea, OneSubsea and Sonardyne. We have supplied a 1.8m x 7m bore pressure vessel, with an actuated chock closure; developed specifically for testing full-size subsea flexible riser buoyancy modules or DBMs. This remains one of the largest pressure vessels of its type in the world; with such an innovative, quick and easy closure system.

Please follow the link below to see our designed and manufactured Actuated Chock Closure Pressure Vessel with integrated Pressure Control System for Sonardyne’s Hydrostatic Pressure Test Facility https://www.sonardyne.com/product/hydrostatic-pressure-testing-facility

Actuated Chock Closure Pressure Vessels Enquiry

Please get in touch with us using the form to enquire about our actuated chock closure pressure vessels.

Fill out this field
Please enter a valid email address.
Fill out this field
KWDS - Resources Brochure Thumbnail - Actuated Chock Closure Pressure Vessel

Project Examples

Pressure vessel for testing subsea sonar equipment and technology

Pressure testing sonar technology and equipment

A pressure vessel used to validate the integrity of subsea equipment, instruments and systems simulating ultra-deepwater operating environments.

  • Pressure rating: 630 bar
  • Size: Ø760mm x 2000mm depth
  • Temperature: -10°C to +50°C
  • Volume: 910 litres

Pressure testing sonar technology and equipment

A pressure vessel used to validate the integrity of subsea equipment, instruments and systems simulating ultra-deepwater operating environments.

  • Pressure rating: 630 bar
  • Size: Ø760mm x 2000mm depth
  • Temperature: -10°C to +50°C
  • Volume: 910 litres
Pressure vessel for testing subsea sonar equipment and technology

Pressure vessel for testing some of the largest Buoyancy Modules manufactured

A high-pressure vessel used for hydrostatic testing some of the largest buoyancy modules for the subsea, deepwater and ultra-deepwater oil and gas applications.

  • Pressure rating: 475 bar
  • Size: Ø1800mm x 7400mm depth
  • Temperature: 0°C to +50°C
  • Volume: 17,800 litres
Pressure Vessel for qualification testing distributed and drill riser buoyancy modules

Pressure vessel for testing some of the largest Buoyancy Modules manufactured

A high-pressure vessel used for hydrostatic testing some of the largest buoyancy modules for the subsea, deepwater and ultra-deepwater oil and gas applications.

  • Pressure rating: 475 bar
  • Size: Ø1800mm x 7400mm depth
  • Temperature: 0°C to +50°C
  • Volume: 17,800 litres
Pressure Vessel for qualification testing distributed and drill riser buoyancy modules
Pressure Testing Subsea Harness Assemblies

Pressure Testing Subsea Controls and Communications Connectors

A pressure vessel used for qualification testing subsea harnesses for the deepwater oil and gas sector.

  • Pressure rating: 630 bar
  • Size: Ø760mm x 1440mm depth
  • Temperature: -10°C to +50°C
  • Volume: 635 litres

Pressure Testing Subsea Controls and Communications Connectors

A pressure vessel used for qualification testing subsea harnesses for the deepwater oil and gas sector.

  • Pressure rating: 630 bar
  • Size: Ø760mm x 1440mm depth
  • Temperature: -10°C to +50°C
  • Volume: 635 litres
Pressure Testing Subsea Harness Assemblies
