High Pressure Testing Systems with KWik-Lok Closures

  1. Home
  2. Products
  3. Pressure Vessel Closures
  4. KWik-Lok Closure Pressure Vessels

KW Designed Solutions developed our KWik-Lok closure high pressure vessel which is equipped with our unique automated quick-acting closure. The KWik-Lok closure has been innovatively engineered as a result of working closely with our customers over many years. Using electrically actuated integrated tilting chocks, safely and securely lock the closure plug-in position. Robust in design; providing quick and easy opening and closing functionality of the pressure vessel at the push of a button.

Created with our existing customers in mind, the concept was driven to provide a much more compact solution, for medium to large-sized pressure vessels that require a quick-locking closure mechanism. The compact and slender nature of the KWik-Lok closure design allows the body and neck of the pressure vessel to be manufactured from minimal material quantities; making manufacturing costs more competitive than other vessel types. It also ensures that no manual handling of the heavy chocks is required; they simply remain located within the plug, whilst tilting into the wall of the pressure vessel body when actuated.

The closure remains low weight and has numerous attachment points; meaning it can be raised and lowered using a standard hoist, with a low to moderate lifting capacity. The KWik-Lok closure comes with a Plug Guidance System (PGS) for alignment with the vessel and attachment points are also included on the underside of the closure, for hanging off the Device Under Test (DUT).

Used in vertical orientation, these high pressure vessels have a relatively small footprint, taking up minimal shop-floor space. If required, the vessel can be provided with its own closure handling system, which can be installed below ground level or supplied with its own structural safety enclosure.

High Pressure KWik-Lok Closure Pressure Testing Vessel

Features

  • Materials of construction: Stainless Steels, Carbon and Alloy Steels
  • Multi-Penetration Pressure Vessel Closure
  • Multi-Penetration Pressure Vessel Body
  • Pressure: 200 Bar to 1000 Bar
  • Push Button Lock/ Unlock with Status Indication and Integral Safety Interlock System
  • Seal Type: O Ring with PTFE back-up-ring or Springsele®
  • Size: Between Ø500mm to Ø2500mm bore and depths of 500mm to 8000mm
  • Temperature: -20°C to 200°C
  • Volumes: 100 Litres to 40,000 Litres

Benefits

  • Guided Closure Alignment System allowing for safe and easy operation
  • Quick-acting opening and closing times: 2 minutes to open/ close, 30 seconds to lock/ unlock
  • Custom size and pressure range available to meet specific requirements
  • Integral safety interlock systems prevents accidental opening and allows for the integration with pressure control systems and safety enclosure door locking devices
  • Long service life
  • Low maintenance requirements
  • Multiple ports and penetrations for tooling, electrical feed-throughs and pressure control hardware
  • Rapid, single push button lock/ unlock functionality
  • SWL rated closure for the attachment of the DUT (Device Under Test) – reducing the need for separate handling

Applications and Customer Uses

The KW Designed Solutions KWik-Lok closure pressure vessel is a popular choice for our customers within the energy and subsea industry sectors.

The ease of handling and safe and innovative quick-acting closure, provide the customer with a unique and perfectly suited design, for their in-house operating requirements.

KWik-Lok Closure Pressure Vessels used for FAT, Production Testing and New Product Development testing:

  • Subsea Electrical Components
  • Subsea Pressure Housings
  • ROV and AUV Components
  • Electrical Penetrators and Sensors
  • Cable and Hose Assemblies
  • Full-Scale Buoyancy Module Testing

The unique KWik-Lok closure is favoured by many blue-chip companies in the energy sector who require a large bore pressure vessel.

KW Designed Solutions has designed and manufactured a KWik-Lok closure high pressure testing system with an internal bore of 2.5m, with a depth of 8m for the testing of full sized subsea buoyancy modules. This remains one of the largest pressure vessels of its type in the world, with such a quick and easy operating closure system.

KWik-Lok Closure Test Chamber Project Examples

KWik-Lok Closure Pressure Vessels Enquiry

Please get in touch with us using the form to enquire about our KWik-Lock closure pressure vessels.

Fill out this field
Please enter a valid email address.
Fill out this field
KWDS - Resources Brochure Thumbnail - KWik-Lok Closure Pressure Vessel

KWik-Lok Closure Pressure Vessels DOWNLOAD

High pressure testing system for subsea Chemical Injection Metering Valve assembly testing

KW Designed Solutions has designed and manufactured a KWik-Lok Closure Hyperbaric Test Chamber with a Fluid Control Module and supporting high pressure testing equipment for a global subsea valve manufacturing facility.

The subsea valve manufacturing covers the traditional subsea ball, gate and check valves along with the latest chemical injection metering valve technology to meet the demanding requirements of subsea applications.

High Pressure Hyperbaric and hydrostatic CIMV assembly testing
High Pressure system for testing underwater robotics technology

High pressure testing system for underwater robotics technology testing

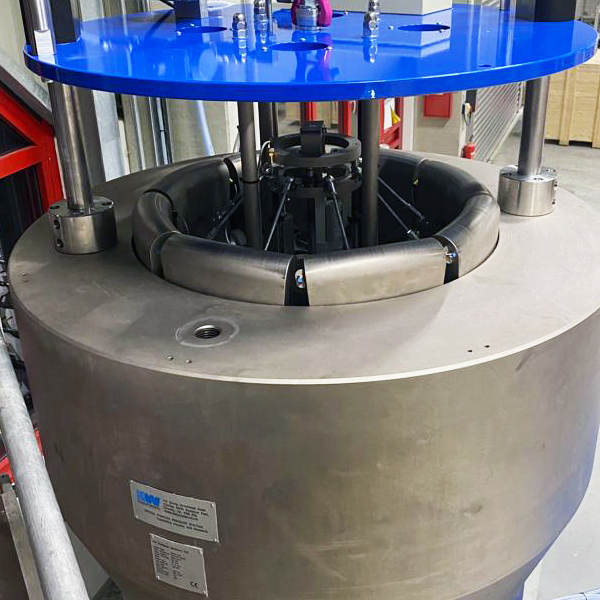

KW Designed Solutions designed and manufactured a KWik-Lok Closure Hyperbaric Test Chamber with a fully automated pressure control system for a world-leading manufacturer of autonomous underwater vehicles.

High pressure testing system used for testing subsea housings and developing new subsea equipment

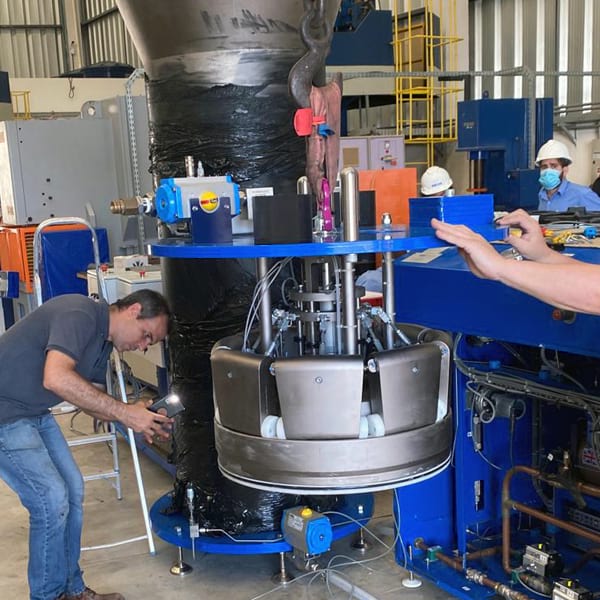

Fully automated high pressure hyperbaric pressure testing system designed, manufactured and commissioned for a Centre for Integrated Manufacturing and Technology based in the state of Bahia, Brazil.

Its laboratories and services support industries with technological and applied research in the areas of manufacturing processes, metrology and product development, along with automotive and industrial automation.

High pressure testing system
