We engineer and supply complete solutions for standard high pressure testing applications and create customised pressure systems for more complex and challenging requirements.

We approach each project with the same meticulous attention to detail, to ensure we provide the most suitable, innovative and cost-effective system for each customer’s individual needs.

One project example is where we created a clean high pressure controlled environment to guarantee accurate results using aggressive and dirty test media, by implementing a chemical/ diaphragm seal into the high pressure control system.

At KW Designed Solutions, we work closely with our customers; ensuring we not only deliver exceptional, technical and market-leading products but a full cost-effective turnkey service too.

Examples of Unique Pressure Testing Applications:

  • Automated hassler cell for permeability testing
  • High pressure, high temperature chemical seal
  • Cryogenic seal testing system for static and dynamic test regimes
  • Diesel injector testing system for atomisation testing
  • Equipment for monitoring and controlling pressure – pressure gauges, transmitters and switches
  • HPHT chemical seal designed for a 2000 bar sour gas pressure control system
  • Slow strain rate testing (SSRT) and tensile testing in high pressure sour gas (H2S)

HPHT Chemical Seal

Equipment for monitoring and controlling pressure such as pressure gauges, transmitters and switches are most reliable when operating with clean fluid. When performing high pressure testing with aggressive and dirty test media, KW Designed Solutions can create a clean pressure controlling environment, by implementing a chemical seal (diaphragm seal) into the pressure control system.

High pressure, high temperature chemical seal

Chemical Seal

Equipment for monitoring and controlling pressure such as pressure gauges, transmitters and switches are most reliable when operating with clean fluid. When performing high pressure testing with aggressive and dirty test media, KW Designed Solutions can create a clean pressure controlling environment, by implementing a chemical seal (diaphragm seal) into the pressure control system.

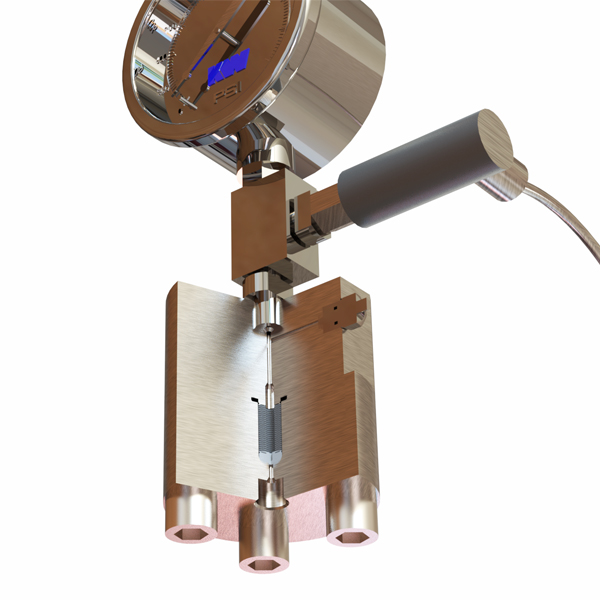

A unique HPHT chemical seal was designed and implemented within a HPHT autoclave system, for accurate simulation of downhole sour gas environments.
High Pressure Dynamic Seal Testing System

Cryogenic Seal Testing System

KW Designed Solutions has developed and engineered a high pressure testing system for high, low and cryogenic temperature testing of elastomeric, PTFE and thermoplastic seals. We have provided configurable solutions for testing both static and dynamic seal applications, with linear and rotary movement, that can also conduct back pressure testing.

Cryogenic Seal Testing System

KW Designed Solutions has developed and engineered a high pressure testing system for high, low and cryogenic temperature testing of elastomeric, PTFE and thermoplastic seals. We have provided configurable solutions for testing both static and dynamic seal applications, with linear and rotary movement, that can also conduct back pressure testing.

High Pressure Dynamic Seal Testing System

Permeation Cell

KW Designed Solutions has designed and engineered special purpose high pressure, high temperature gas permeation cells for world-leading universities and research laboratories. Permeation cells that accurately quantify hydrogen permeation rates through polymers and polymer composites.

Permeation Cell

Permeation Cell

KW Designed Solutions has designed and engineered special purpose high pressure, high temperature gas permeation cells for world-leading universities and research laboratories. Permeation cells that accurately quantify hydrogen permeation rates through polymers and polymer composites.

KWDS - Products - Unique Applications - Permeation Cell - Right-Hand Image
Advanced High Pressure Testing System

Advanced High Pressure Testing Systems

KW Designed Solutions has designed and produced an advanced high pressure testing system for a manufacturer of digital intelligent artificial gas lift production optimisation systems or DIAL, which are supplied to oil and gas operators globally.

Advanced High Pressure Testing Systems

KW Designed Solutions has designed and produced an advanced high pressure testing system for a manufacturer of digital intelligent artificial gas lift production optimisation systems or DIAL, which is supplied to oil and gas operators globally.

Advanced High Pressure Testing System
