High Pressure Testing System with a KWik-Lok Closure
(Project Example)

  1. Home
  2. Products
  3. Pressure Vessel Closures
  4. KWik-Lok Closure Pressure Vessels
  5. High Pressure Testing CIMVs
High Pressure Testing System for Subsea Chemical Injection Metering Valve Assembly Testing

(Ref: SO896)

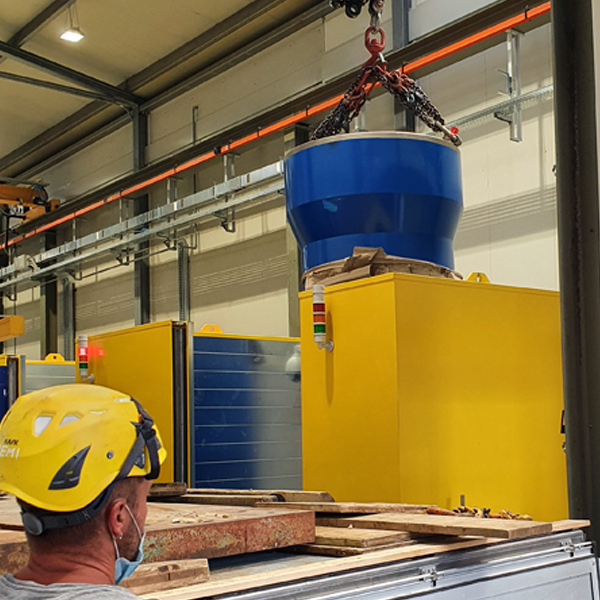

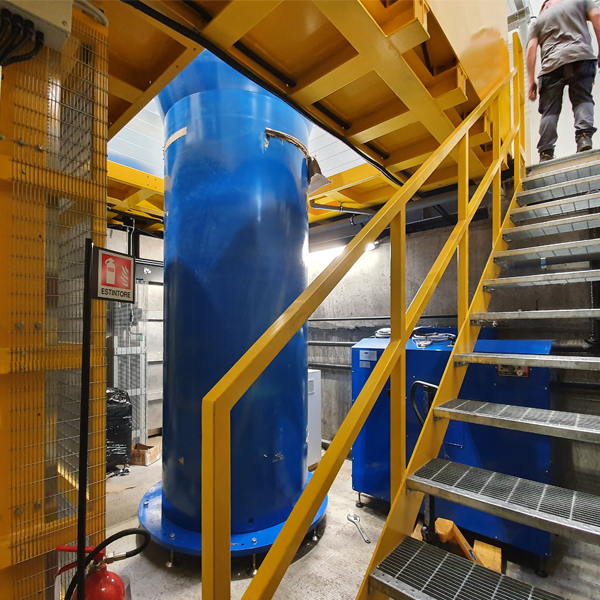

A high pressure testing system was designed to enable our customer to be able to perform simultaneous or independent hyperbaric and hydrostatic testing of their CIMV technology within their purpose-built European testing facility.

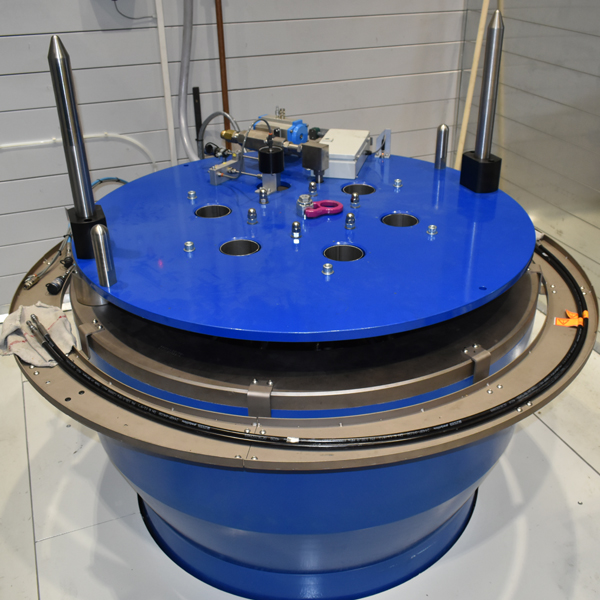

The CIMV test component is easily and safely attached to the underside of the KWik-Lok closure tooling with relevant ports and penetrations for CIMV connectivity for testing, along with the hyperbaric test chamber body.

A control system with customer-specific programmes to manage control of both the hyperbaric chamber and the CIMV test component, whilst under hydrostatic pressure.

Specific filling times, pressurisation ramp rates, dwell set points and depressurisation rates for both the high pressure test chamber and the CIMV are part of the system’s capabilities.

Pressure450 bar (6,527 psi)
Temperature-10°C to +60°C
Bore sizeØ1000mm to 3000mm depth
Volume2,400 litre
Ports9
Material of constructionAISI 4140
Test MediaWater/ Glycol
