Subsea Electrical Connector High Pressure Testing System with Media Separation

(Ref: SO632)

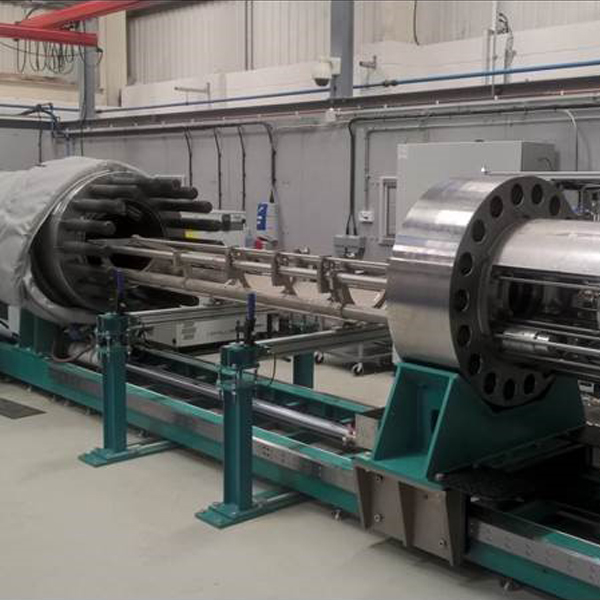

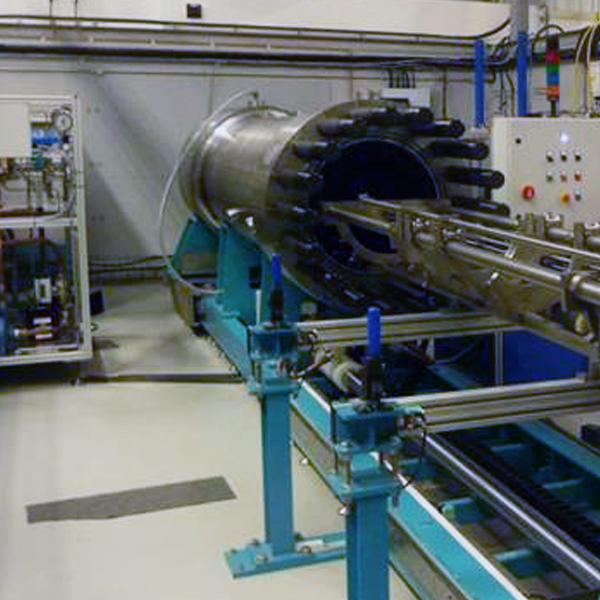

The high-pressure testing system with its automated fluid control module included a media separator assembly that was located inside the high-pressure vessel working bore.

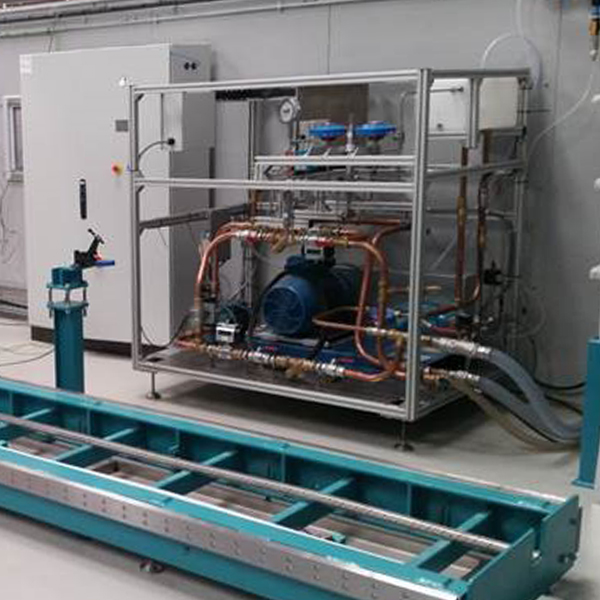

Pressure control for the system is via the fluid control module that incorporates a clean and ‘dirty’ side; the dirty side containing sand and silt, whilst the clean side is mains tap water.

The design ensures the turbid seawater environment is separated from components not designed for this type of service.

Pressure1000 bar (14,500 psi)
Temperature-20°C to +50°C
Bore sizeØ600mm to 1500mm depth
Volume424 litre
PortsMultiple
Material of constructionStainless Steel
Test MediaWater/ Seawater/ Oil
