High Pressure Testing System with Integrated Temperature Control

(Ref: SO949)

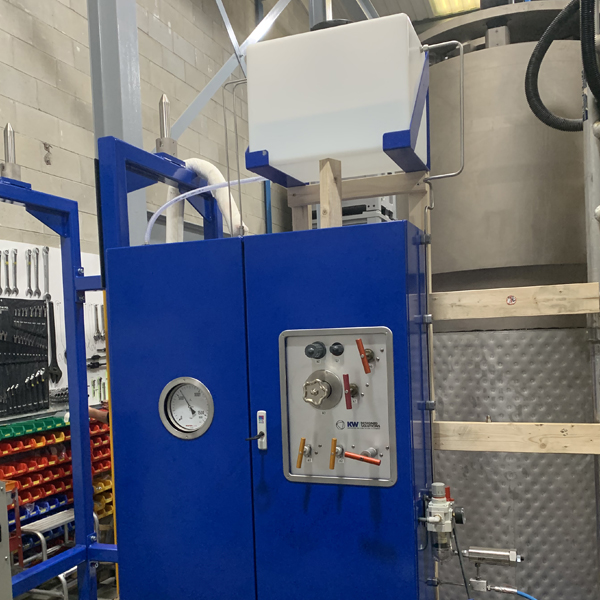

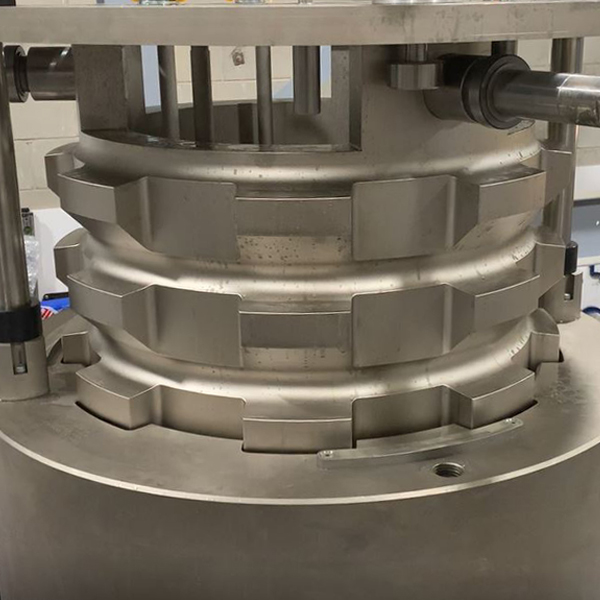

A thermoregulation control unit with heating and chilling units transfers heating and cooling to and from the high-pressure testing vessel by circulating a transferring process fluid through heat exchangers on the external surface of the pressure vessel body. This hot or cold temperature transfers through the pressure vessel wall into the test medium contained within the high-pressure testing vessel.

The heat transfer jackets are also wrapped in thermal insulation jackets to prevent excessive heat loss during test periods.

The temperature rates can be variable and programmable functions, pre-defined from the PLC.

Pressure1000 bar (14,500 psi)
Temperature-20°C to +50°C
Bore sizeØ600mm to 1500mm depth
Volume424 litre
PortsMultiple
Material of constructionStainless Steel
Test MediaWater/ Seawater/ Oil
