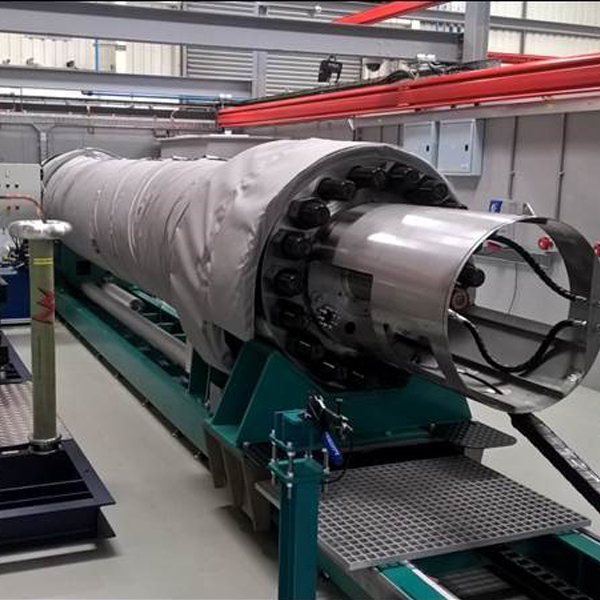

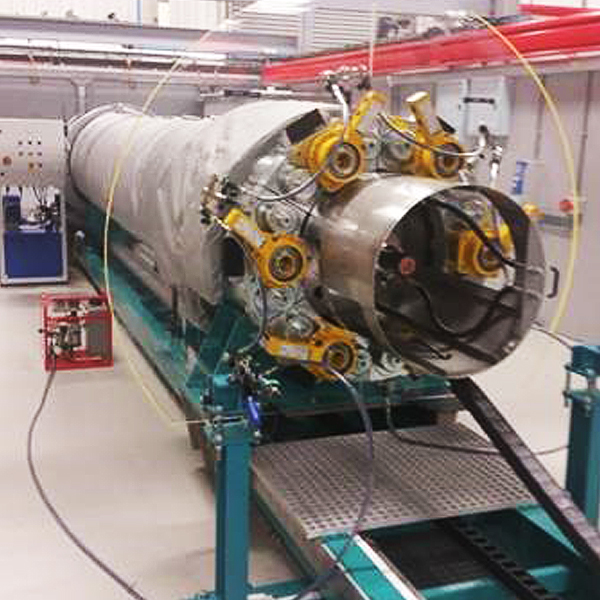

Subsea Electrical Connector Pressure Testing System with Integrated Mate/ De-mate Actuation

(Ref: SO575)

Along with the two 3 meter length, high-pressure testing systems, this 6-meter version was designed and created to interface with the next generation of subsea electrical connectors and put them through the worst conceivable environmental and seafloor conditions they might need to survive and operate in a high voltage. Testing varies from high voltage through the latest subsea connectors to exposing them to sudden temperature drops or increases.

Qualification is conducted according to stringent (Statoil Spec) Subsea Electrical High Voltage Connector Assemblies standards.

Pressure1000 bar (14,500 psi)
Temperature-20°C to +50°C
Bore sizeØ600mm to 1500mm depth
Volume424 litre
PortsMultiple
Material of constructionStainless Steel
Test MediaWater/ Seawater/ Oil
