Pressure Testing Subsea Buoyancy Products

(Ref: SO942-A1)

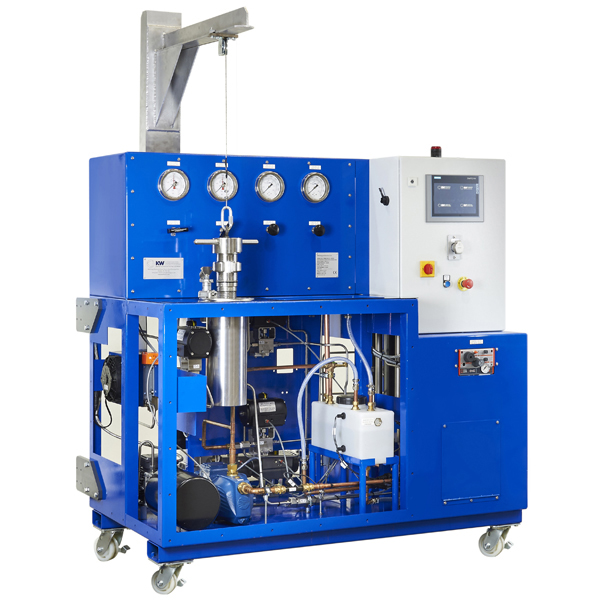

Self-contained pressure testing system designed for production testing customer specific subsea buoyancy materials.

The system included the pressure vessel with a manual closing bayonet style of closure. This was attached to a davit arm for easily and safely changing the product out of the basket that is attached to the underside of the closure.

The integrated automated control system for filling, purging, pressurising, depressurising incorporating customer specific pre-defined test procedures and profiles designed to simulate harsh environmental conditions, with programmed pressure and temperature cycles, time and date for full test reporting data. Integrated within a custom designed pressure system support frame.

Pressure1000 bar (14,500 psi)
Temperature0°C to 100°C
Bore sizeØ75mm to 226mm depth
Volume1 litre
Ports5 feedthroughs/tooling, 1 fill/drain
Material of construction 17/4 H1150D
Ports and PenetrationsMultiple
