Pressure testing subsea electrical connectors with mate/ de-mate functionality

(Ref: SO444, Equip No. 1092)

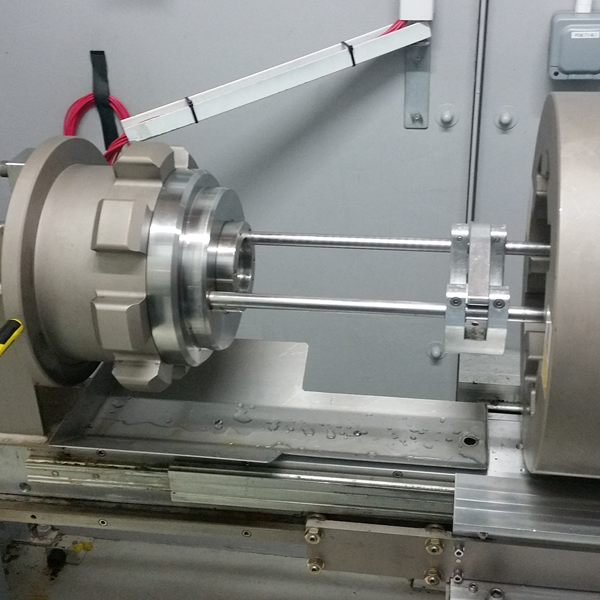

This special purpose pressure vessel, with the bayonet quick-acting closure, incorporates a manual interlock. It has been designed to carry out Factory Acceptance Tests (FAT) on subsea electrical connectors.

The manual quick acting 1/8 turn closure, incorporates a manual safety shot bolt interlock.

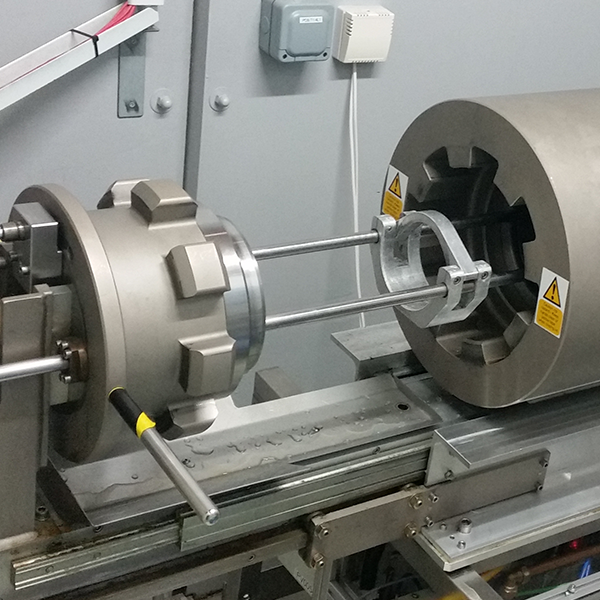

The design allows pressure testing of the connectors to be static or dynamic i.e. the connectors are allowed to mate and de-mate during electrical testing. The mate/ de-mate system is mainly incorporated into the closure design.

Pressure517 bar (7,500 psi)
TemperatureAmbient
Bore sizeØ180mm to 400mm long
Volume10 litre
Ports2feedthroughs/tooling, 1 fill/drain
Material of constructionASTM SA-564 Grade 630
Corrosion protectionElectroless Nickel Plating
