Testing wellhead pressure and temperature sensors

(Ref: SO207, Equip No. 2003)

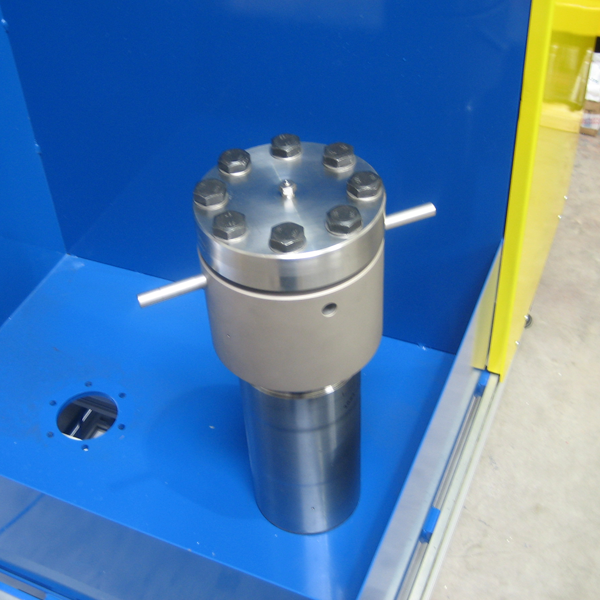

This pressure vessel containment rig was designed to optimise the throughput of wellhead pressure and temperature sensor production testing.

The rig was designed to accommodate 4 vessels, split into 2 banks of 2. Whilst pressure testing is carried out on two vessels; the other two vessels are safely isolated and prepared for the next test.

The pressure vessels are securely located into a bunded enclosure, to contain over-spill, when loading the test component.

Both banks of pressure vessels are connected to a pressure control system and each vessel can be isolated from the system if required.

Pressure2069 bar (30,000 psi)
TemperatureAmbient
Bore sizeØ57mm to 350mm depth
Volume4 litre
Ports1 fill/drain
Material of constructionASME SA 564
Corrosion protectionN/A
